AudienceLayout table - SuperOffice

AudienceLayout Table (234)

One layout (of webparts and other stuff) for an audience instance

Fields

Name	Description	Type	Nullable
AudienceLayout_id	Primary key	PK	No
instanceName	The name of the installed instance of Audience - must match the web.config file	String(239)	No
instanceLayout	The layout, as a serialized string via the Provider architecture	String(2047)	No
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

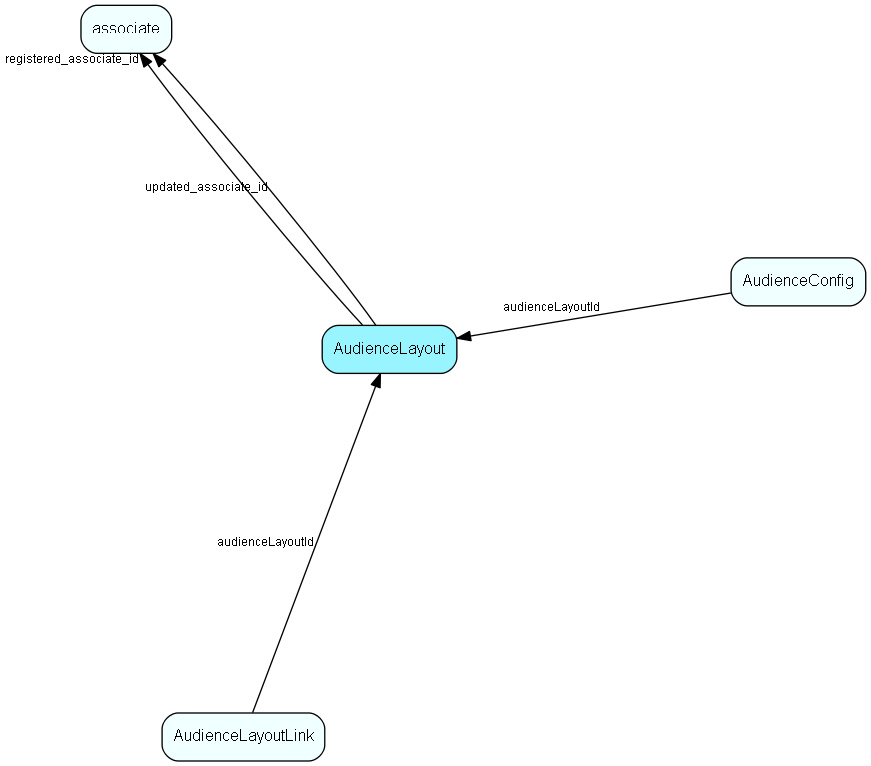

AudienceLayout table relationship diagram

Indexes

Fields	Types	Description
instanceName	String(239)	Unique

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
AudienceConfig	Configuration data for Audience core and webparts
AudienceLayoutLink	Link between an audience layout and some target grouping table - might be Role or Category

Replication Flags

None

Security Flags

No access control via user’s Role.

Related topics

AudienceLayoutLink table AudienceConfig table AudienceVisibility table Blocked tables list ExternalEvent table SORLabelLayout table
