ProductCategory Table (408)

ProductCategory MDO list item table. List for the ProductCategory field of the Product table (Quote Management)

Fields

Name	Description	Type	Nullable
productcategory_id	Primary key	PK	No
name	The list item	String(239)	No
rank	Rank order	UShort	Yes
tooltip	Tooltip or other description	String(254)	Yes
deleted	0 -> record is active 1 -> record is ‘deleted’ and should not be shown in lists	UShort	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

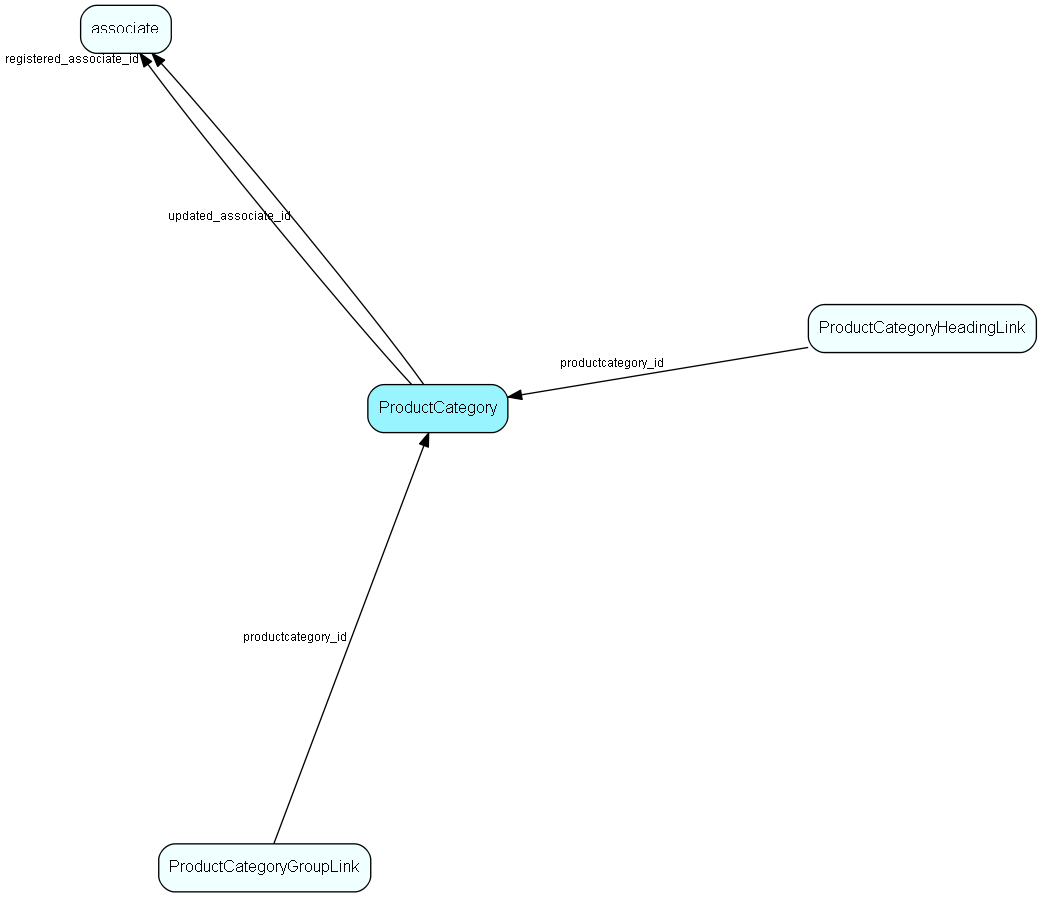

ProductCategory table relationship diagram

Indexes

Fields	Types	Description
name	String(239)	Unique

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
ProductCategoryGroupLink	User group link table for ProductCategory, for MDO item hiding
ProductCategoryHeadingLink	Heading link table for ProductCategory, for MDO item headings

Replication Flags

Replicate changes DOWN from central to satellites and travellers.
Replicate changes UP from satellites and travellers back to central.
Copy to satellite and travel prototypes.

Security Flags

No access control via user’s Role.
