workflow_step_option_link table - SuperOffice

workflow_step_option_link Table (533)

Link steps to other steps through step options

Fields

Name	Description	Type	Nullable
workflow_step_option_link_id	Primary key	PK	No
workflow_step_option_id	The workflow step option to connect to	FK workflow_step_option	Yes
workflow_step_id	A workflow step connected to the option	FK workflow_step	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No
Rank	Step order	Int	Yes

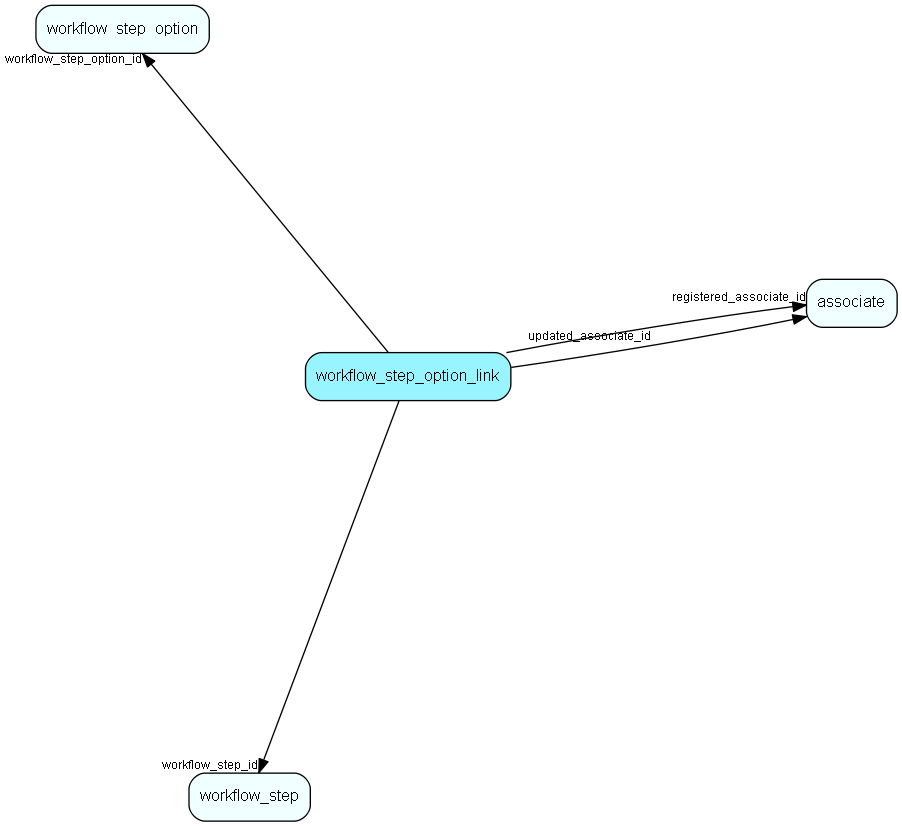

workflow_step_option_link table relationship diagram

Indexes

Fields	Types	Description

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
workflow_step	A set of steps related to a workflow.
workflow_step_option	Some steps can have optional child ‘flows’, a new series of steps

Replication Flags

None

Security Flags

Sentry controls access to items in this table using user’s Role and data rights matrix on the table’s parent.
