workflow_step Table (530)

A set of steps related to a workflow.

Fields

Name	Description	Type	Nullable
workflow_step_id	Primary key	PK	No
step_type	Step type	Enum WorkflowStepType	Yes
settings	Step settings/configuration/variables	Clob	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

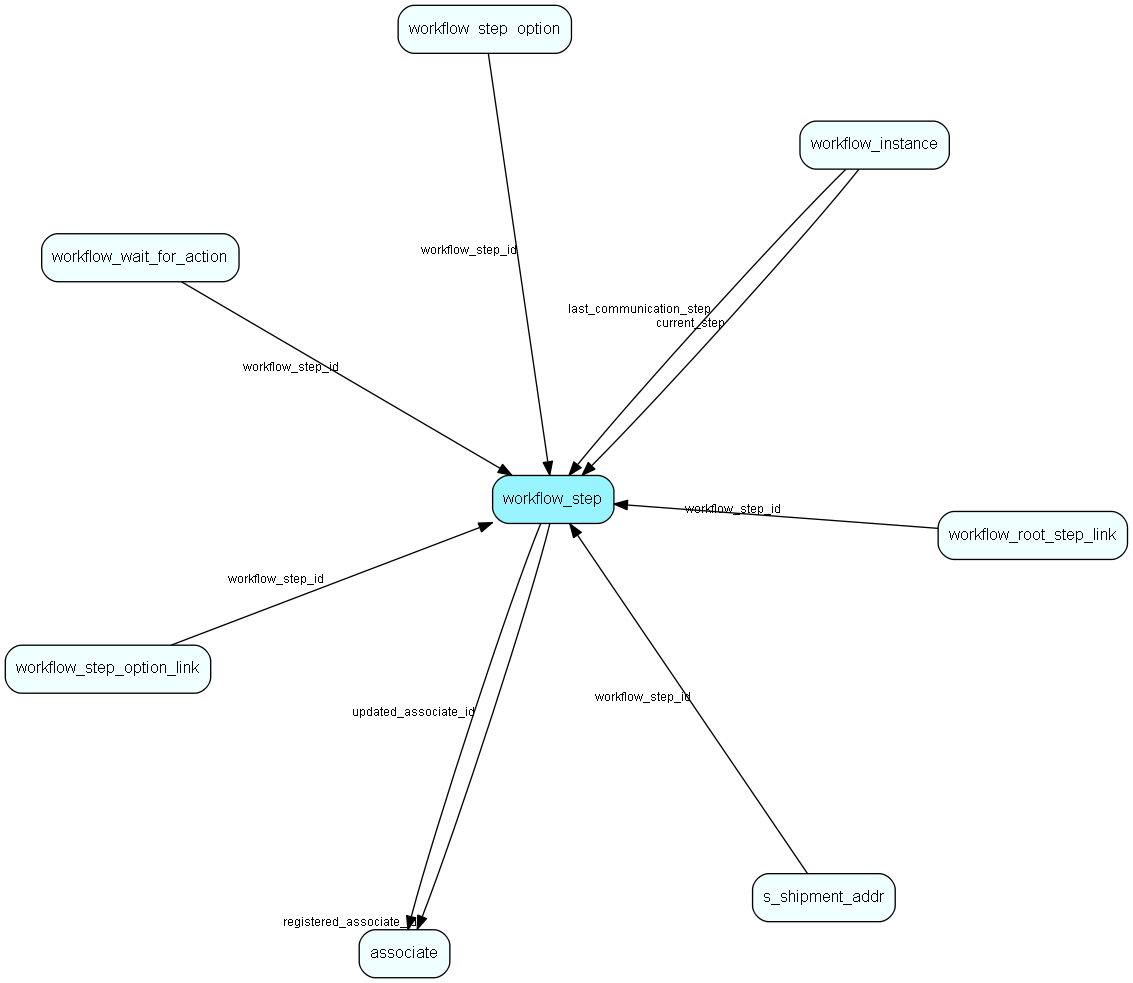

workflow_step table relationship diagram

Indexes

Fields	Types	Description

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
s_shipment_addr	Addresses that are ready to be sent in a shipment.
workflow_instance	A set of properties related to the workflow instance of one participant going through the flow
workflow_root_step_link	Link root steps to the workflow
workflow_step_option	Some steps can have optional child ‘flows’, a new series of steps
workflow_step_option_link	Link steps to other steps through step options
workflow_wait_for_action	Some steps wait for actions, this is info about those actions

Replication Flags

None

Security Flags

Sentry controls access to items in this table using user’s Role and data rights matrix on the table’s parent.

Related topics

workflow_step_option table workflow_step_option_link table workflow_root_step_link table workflow_instance table workflow_wait_for_action table Enum WorkflowStepType
