StatusDef Table (198)

Status definitions. Name and description are in LocaleText for internationalization

Fields

Name	Description	Type	Nullable
StatusDef_id	Primary key	PK	No
isVisual	Should the status be visualized (active) in the client	Bool	Yes
needsUpdate	Is the definition dirty, ie., ALL values are invalid until a recalculation; this flag is set when the status DEFINITION is changed, as opposed to the flag on StatusValue	Bool	Yes
rank	Priority rank, in case more than one status is signalled. Lowest wins	UShort	Yes
deleted	Deleted flag, 1 if this record is deleted (never from the database)	Bool	Yes
ownerTable	The owning entity, currently contact or project	TableNumber	Yes
dirtyOnChange	If 1, the statusValue records should be set to dirty whenever information related to the owning entity changes. If 0, nothing happens.	Bool	Yes
defaultTask	Default task type for this status; the default task text is in the text table (since it can be long), and may contain template variables	FK Task	Yes
lastGenerated	When was the last generation finished (i.e., statusValue rows created)	DateTime	Yes
numMatches	Number of targets that have this status, this should be the number of rows in StatusValue pointing to this definition, and that have isSignalled set to 1	UInt	Yes
numNeedUpdate	Number of targets that had this status, but have their needsUpdate bit set due to some change	UInt	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No
generationStart	When was the last regeneration started	DateTime	Yes

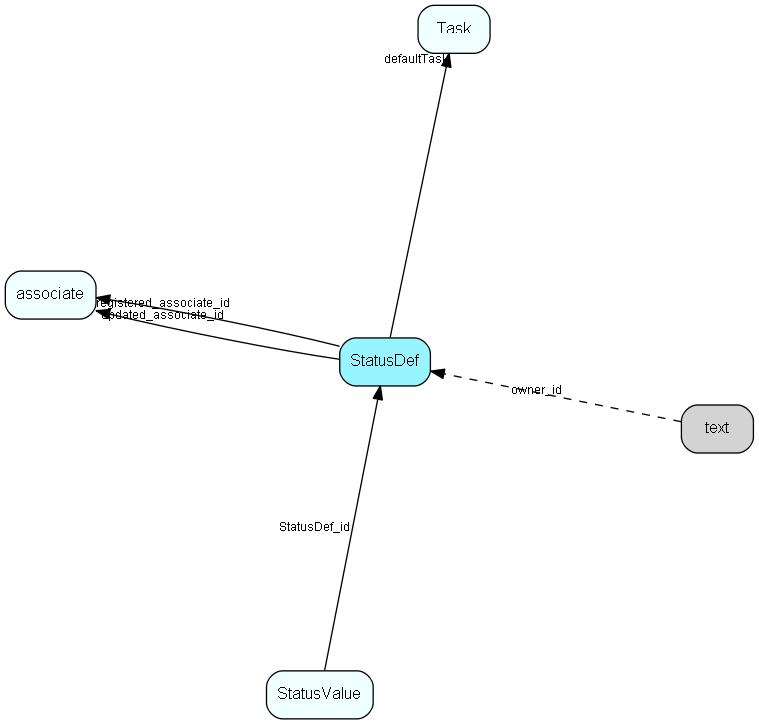

StatusDef table relationship diagram

Indexes

Fields	Types	Description

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
StatusValue	Values for statuses
Task	Task list table, activity types, like Phone, Meeting
text	Long text fields from all over the system

Replication Flags

Replicate changes DOWN from central to satellites and travellers.
Replicate changes UP from satellites and travellers back to central.
Copy to satellite and travel prototypes.

Security Flags

No access control via user’s Role.

Related topics

statusdef StatusValue table Task table text table Create Default Status Monitor Create Default Project Status
