SubscriptionUnit Table (442)

SubscriptionUnit MDO list item table. The list of Subscription units, in the internal product register (year/quarter/month etc., or perhaps amounts if volume-based subscription)

Fields

Name	Description	Type	Nullable
subscriptionunit_id	Primary key	PK	No
name	The list item	String(239)	No
rank	Rank order	UShort	Yes
tooltip	Tooltip or other description	String(254)	Yes
deleted	0 -> record is active 1 -> record is ‘deleted’ and should not be shown in lists	UShort	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

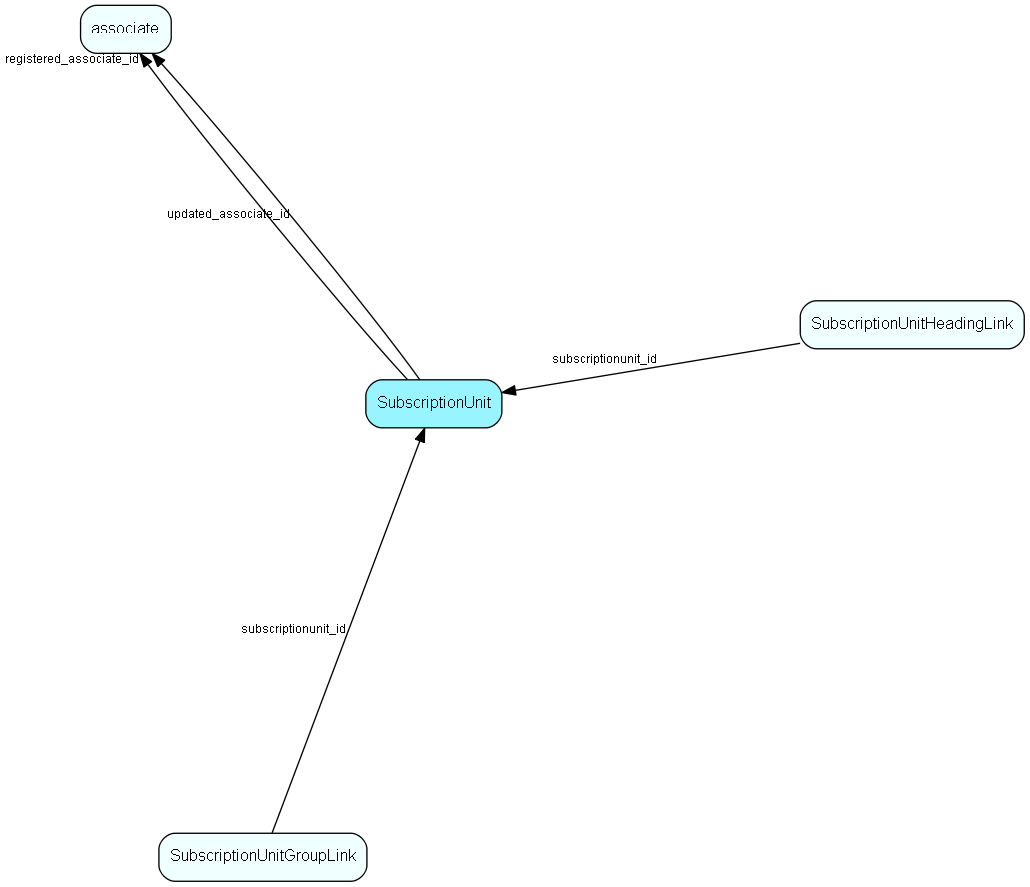

SubscriptionUnit table relationship diagram

Indexes

Fields	Types	Description
name	String(239)	Unique

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
SubscriptionUnitGroupLink	User group link table for SubscriptionUnit, for MDO item hiding
SubscriptionUnitHeadingLink	Heading link table for SubscriptionUnit, for MDO item headings

Replication Flags

Replicate changes DOWN from central to satellites and travellers.
Replicate changes UP from satellites and travellers back to central.
Copy to satellite and travel prototypes.

Security Flags

No access control via user’s Role.

Related topics

SubscriptionUnitGroupLink table SubscriptionUnitHeadingLink table subscriptionunit NSQuoteLine NSProduct Product table
