UDefFieldGL table - SuperOffice

UDefFieldGL Table (147)

User group link table for UDefField, for MDO item hiding

Fields

Name	Description	Type	Nullable
UDefFieldGL_Id	Primary key	PK	No
UDefFieldId	Link to field	FK UDefField	No
fieldLineNo	Line number in display, 1, 2, 3…	UShort	No
group_id	Link to Group table	FK UserGroup	No
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

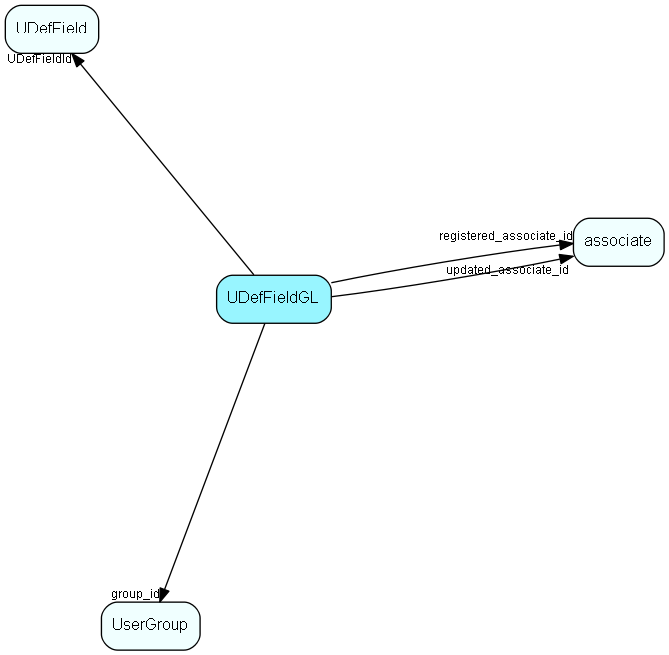

UDefFieldGL table relationship diagram

Indexes

Fields	Types	Description
UDefFieldId	FK	Index
group_id	FK	Index

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
UDefField	Definition table for user-defined fields; one row in this table corresponds to one generation of one field. The user defined fields that are in use, and earlier versions of user defined fields. ColumnId refers to the field type; see UDXXXSmall or UDXXXLarge for the referring ID. Preferences prefsection=‘System’, prefkey=‘CurrentUdefVersioncontact’ (or CurrentUdefVersionperson, project, sale), gives you the current version of user defined fields. prefkey=‘AdminUdefVersion<…>’ gives you the current version that’s being edited. If Current version = admin version, no editing has been done since the last Publish of user defined field was performed.
UserGroup	Secondary user groups

Replication Flags

Replicate changes DOWN from central to satellites and travellers.
Replicate changes UP from satellites and travellers back to central.
Copy to satellite and travel prototypes.

Security Flags

No access control via user’s Role.

Related topics

UDefField table Working with custom objects and fields in API associate table StatusDef table ticket_relation_def table Enum UDefFieldType
