workflow_step_option Table (532)

Some steps can have optional child ‘flows’, a new series of steps

Fields

Name	Description	Type	Nullable
workflow_step_option_id	Primary key	PK	No
workflow_step_id	The workflow step this instance belongs to	FK workflow_step	Yes
name	The name of this option	String(255)	Yes
rank	The rank of this option	Int	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No
key_id	References the object this option is based on (project, selection, link…) given by SplitOptionType on a SplitStep	RecordId	Yes

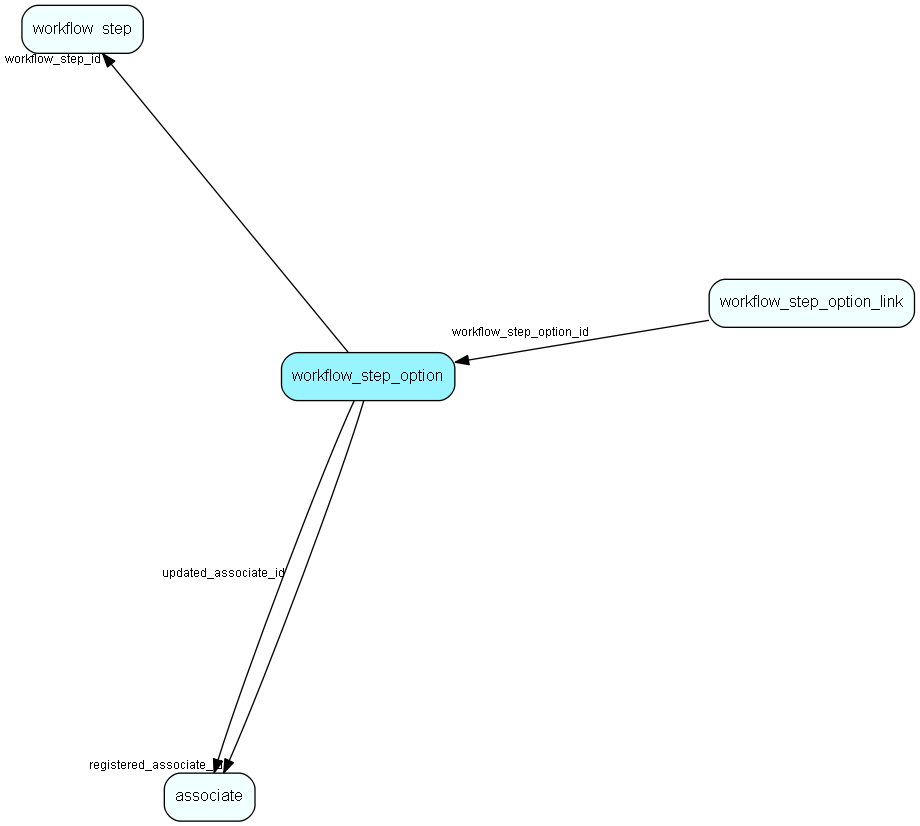

workflow_step_option table relationship diagram

Indexes

Fields	Types	Description
key_id	RecordId	Index

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
workflow_step	A set of steps related to a workflow.
workflow_step_option_link	Link steps to other steps through step options

Replication Flags

None

Security Flags

Sentry controls access to items in this table using user’s Role and data rights matrix on the table’s parent.
