SearchCriteriaGroup table - SuperOffice

SearchCriteriaGroup Table (202)

Criteria storage for Selection and other Find mechanisms

Fields

Name	Description	Type	Nullable
SearchCriteriaGroup_id	Primary key	PK	No
SearchCriteria_id	Owning model	FK SearchCriteria	No
name	The name of this criteria group	String(254)	No
textId	Extra information (descriptive) for this Criteria Group	FK text	Yes
direction	0 = Add, 1 = Subtract this group from the total result	Enum CriteriaGroupDirection	No
rank	Rank order within this CriteriaModel	UShort	No
active	Should this group be executed	UShort	No
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

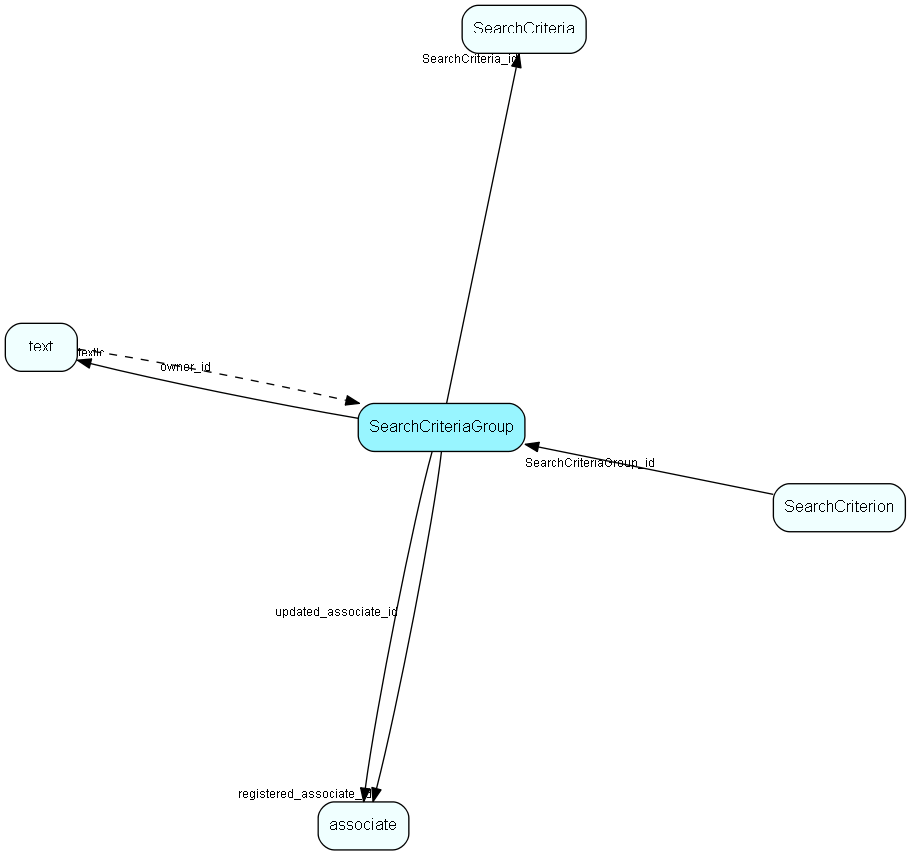

SearchCriteriaGroup table relationship diagram

Indexes

Fields	Types	Description
SearchCriteria_id, rank	FK, UShort	Index

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
SearchCriteria	Criteria storage for Selection and other Find mechanisms
SearchCriterion	Criteria storage for Selection and other Find mechanisms
text	Long text fields from all over the system

Replication Flags

Area Management controlled table. Contents replicated to satellites and traveller databases.
Replicate changes UP from satellites and travellers back to central.
Copy to satellite and travel prototypes.

Security Flags

No access control via user’s Role.

Related topics

SearchCriteria table SearchCriterion table Typical search Enum values for CriteriaGroupDirection Dynamic selections text table
