QuoteConnection Table (26)

Primary key in the CRM database. Definition of a connection to an external system, for the Quote system.

Fields

Name	Description	Type	Nullable
quoteconnection_id	Primary key	PK	No
ERPName	Name of the ERP system (programmatic).	String(254)	No
DisplayName	Connection name shown to user; multi-language support. The name of the connector to display in a list so that the users can choose between them. Typically the name of the client, with maybe the ERP system in parenthesis.	String(254)	Yes
DisplayDescription	Tooltip/description shown to user; multi-language support. Any other info available that would make an uncertain user chose the right connector. Typically, used for tooltip.	String(254)	Yes
Rank	Rank order	Int	Yes
ConnectorName	Programmatic name of the Connector plugin that implements this kind of connection	String(254)	No
ExtraData	Optional extra data, in XML format, for configuring the connector. Connector-specific!	String(3999)	Yes
ErpConnectionId	The ERP Connection that this Quote connection is an extension of	FK ErpConnection	Yes
AllAccess	Is this connection accessible to everyone? If not, then the QuoteConnectionAccess table tells us who can access it	Bool	Yes
Deleted	If set, then this is a row that has been ‘deleted’; we do not physically delete rows to avoid disaster	Bool	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

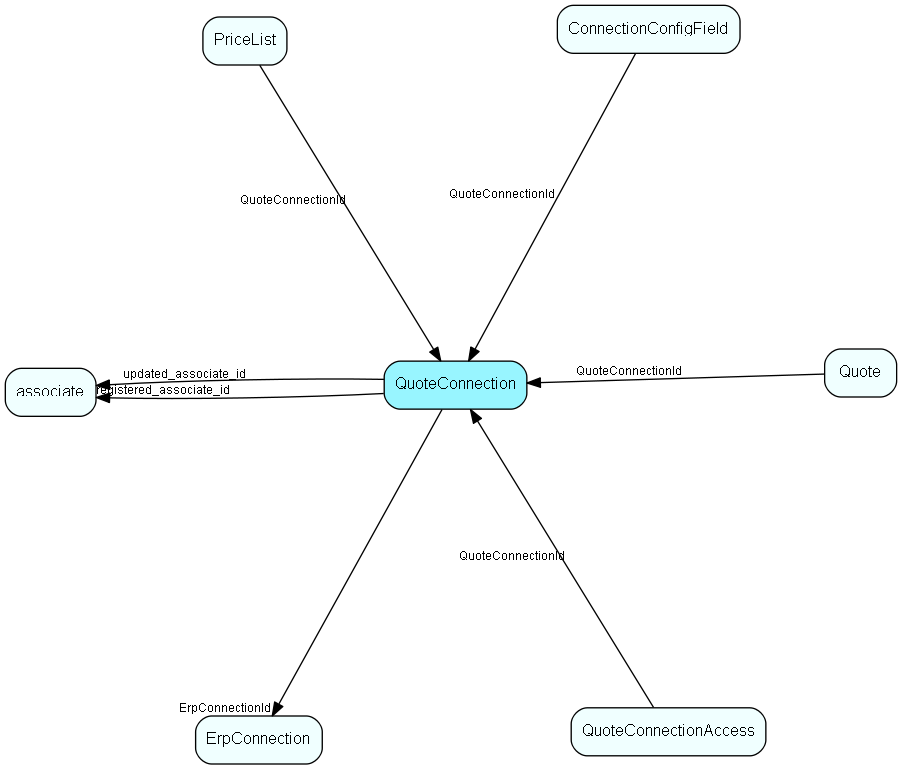

QuoteConnection table relationship diagram

Indexes

Fields	Types	Description

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
ConnectionConfigField	Configuration data for Erp and Quote Connections
ErpConnection	One connection to an ERP connector, specifying Client and other required information
PriceList	List of prices, cached from an ERP system
Quote	Quote root level, at most one per Sale, always connected to one Sale
QuoteConnectionAccess	Access control for Quote Connections

Replication Flags

Replicate changes DOWN from central to satellites and travellers.
Copy to satellite and travel prototypes.

Security Flags

No access control via user’s Role.
