UDList Table (136)

UDList MDO list item table. List table for user-defined lists, contains all user-defined lists. Note - MDO mode for userdefinede lists are either turned on or off, you may not have it on for one userdefined list and off for the others.

Fields

Name	Description	Type	Nullable
UDList_id	Primary key	PK	No
name	The list item	String(239)	No
rank	Rank order	UShort	Yes
tooltip	Tooltip or other description	String(254)	Yes
deleted	0 -> record is active 1 -> record is ‘deleted’ and should not be shown in lists	UShort	Yes
UDListDefinition_id	List to use for populating dropdown or listbox	FK UDListDefinition	No
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

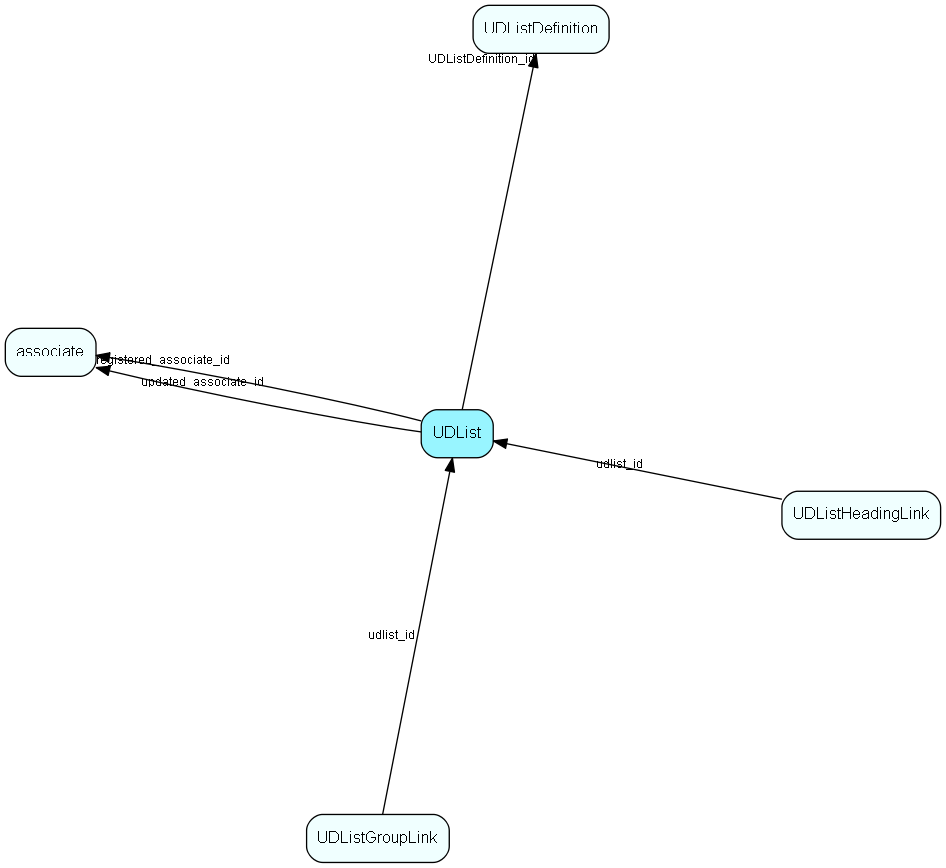

UDList table relationship diagram

Indexes

Fields	Types	Description
name	String(239)	Index

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
UDListDefinition	List table that contains the list of user-defined lists, as well as system-defined lists. The list items are stored in the UDList table.
UDListGroupLink	User group link table for UDList, for MDO item hiding. Note - MDO mode for userdefinede lists are either turned on or off, you may not have it on for one userdefined list and off for the others.
UDListHeadingLink	Heading link table for UDList, for MDO headers. Note - MDO mode for userdefinede lists are either turned on or off, you may not have it on for one userdefined list and off for the others.

Replication Flags

Replicate changes DOWN from central to satellites and travellers.
Replicate changes UP from satellites and travellers back to central.
Copy to satellite and travel prototypes.

Security Flags

No access control via user’s Role.

Related topics

udlist UDListDefinition table associate table UDefField table MDO List Provider names Database table listing
