ErpConnection Table (418)
One connection to an ERP connector, specifying Client and other required informationFields
| Name | Description | Type | Nullable |
|---|---|---|---|
| erpconnection_id | Primary key | PK | No |
| ErpConnectorId | The connector that this connection should call | FK ErpConnector | Yes |
| DisplayName | Connection name shown to user; multi-language support | String(254) | Yes |
| DisplayDescription | Tooltip/description shown to user; multi-language support | String(254) | Yes |
| Active | Is this connection currently active | Bool | Yes |
| ConnectionId | The GUID that uniquely identifies this connection; passed to the Connector in every call | String(127) | Yes |
| MostRecentTimestamp | Datetime, transaction number or other identification of the point in time of the most-recently seen actor in the ERP system | String(254) | Yes |
| AllAccess | Is this connection accessible to everyone? If not, then the ErpConnectionAccess table tells us who can access it | Bool | Yes |
| Deleted | If set, then this is a row that has been ‘deleted’; we do not physically delete rows to avoid disaster | Bool | Yes |
| registered | Registered when | UtcDateTime | No |
| registered_associate_id | Registered by whom | FK associate | No |
| updated | Last updated when | UtcDateTime | No |
| updated_associate_id | Last updated by whom | FK associate | No |
| updatedCount | Number of updates made to this record | UShort | No |
Indexes
| Fields | Types | Description |
|---|---|---|
| ErpConnectorId | FK | Index |
| ConnectionId | String(127) | Unique |

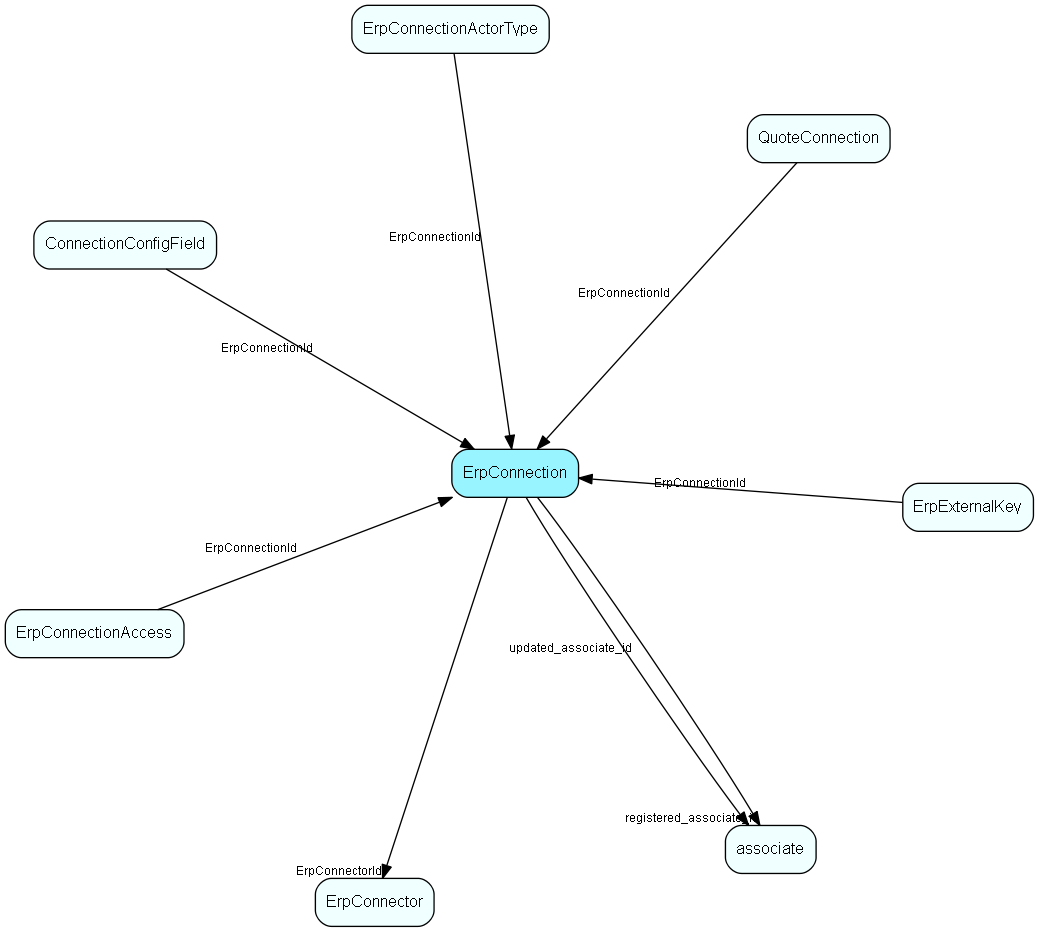

Relationships
| Table | Description |
|---|---|
| associate | Employees, resources and other users - except for External persons |
| ConnectionConfigField | Configuration data for Erp and Quote Connections |
| ErpConnectionAccess | Access control for Erp Connections |
| ErpConnectionActorType | Data about the configuration of one Erp Actor on one ErpConnection |
| ErpConnector | One ERP Connector, known by its URL |
| ErpExternalKey | The external (ERP-facing) key related to a synchronized record / connection |
| QuoteConnection | Primary key in the CRM database. Definition of a connection to an external system, for the Quote system. |
Replication Flags
- None
Security Flags
- No access control via user’s Role.
