doc_document Table (280)
This table contains documents.Fields
| Name | Description | Type | Nullable |
|---|---|---|---|
| id | The primary key (auto-incremented) | PK | No |
| folder_id | The id of the document folder this entry is located in. | FK doc_folder | No |
| attachment_id | The attachment.id for the attachment associated with this document. | FK attachment | No |
| title | The title for the document | String(255) | No |
| created_at | When the document was created | DateTime | Yes |
| created_by | Who created the document | FK ejuser | No |
| last_changed | When the document last was changed | DateTime | Yes |
| changed_by | Who last changed the document | FK ejuser | Yes |
| status | The status of the document | status | Yes |
| access_level | The access level of the document | access_level | Yes |
| description | A descriptive text for the document | Clob | Yes |
| id_string | A field for an id_string which may be used to access the document | String(255) | No |
Indexes
| Fields | Types | Description |
|---|---|---|
| folder_id | FK | Index |
| attachment_id | FK | Index |
| title | String(255) | Index |
| created_by | FK | Index |
| changed_by | FK | Index |

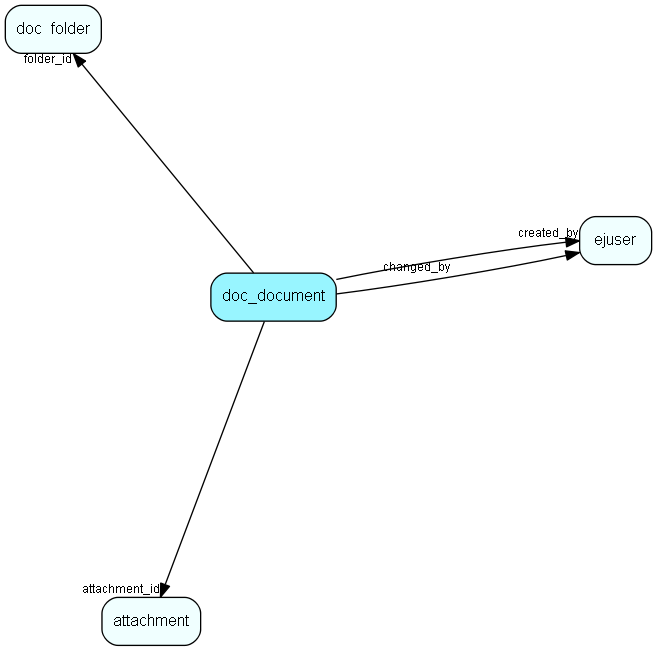

Relationships
| Table | Description |
|---|---|
| attachment | This table contains metadata for attachments. The actual attachments are stored directly on disk, with filenames based on the the primary key for this table. |
| doc_folder | A document folder. |
| ejuser | This table contains entries for the users of the system. |
Replication Flags
- None
Security Flags
- No access control via user’s Role.
