PaymentType table - SuperOffice

PaymentType Table (430)

PaymentType MDO list item table. The list of payment types, in the internal product register

Fields

Name	Description	Type	Nullable
paymenttype_id	Primary key	PK	No
name	The list item	String(239)	No
rank	Rank order	UShort	Yes
tooltip	Tooltip or other description	String(254)	Yes
deleted	0 -> record is active 1 -> record is ‘deleted’ and should not be shown in lists	UShort	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

Indexes

Fields	Types	Description
name	String(239)	Unique

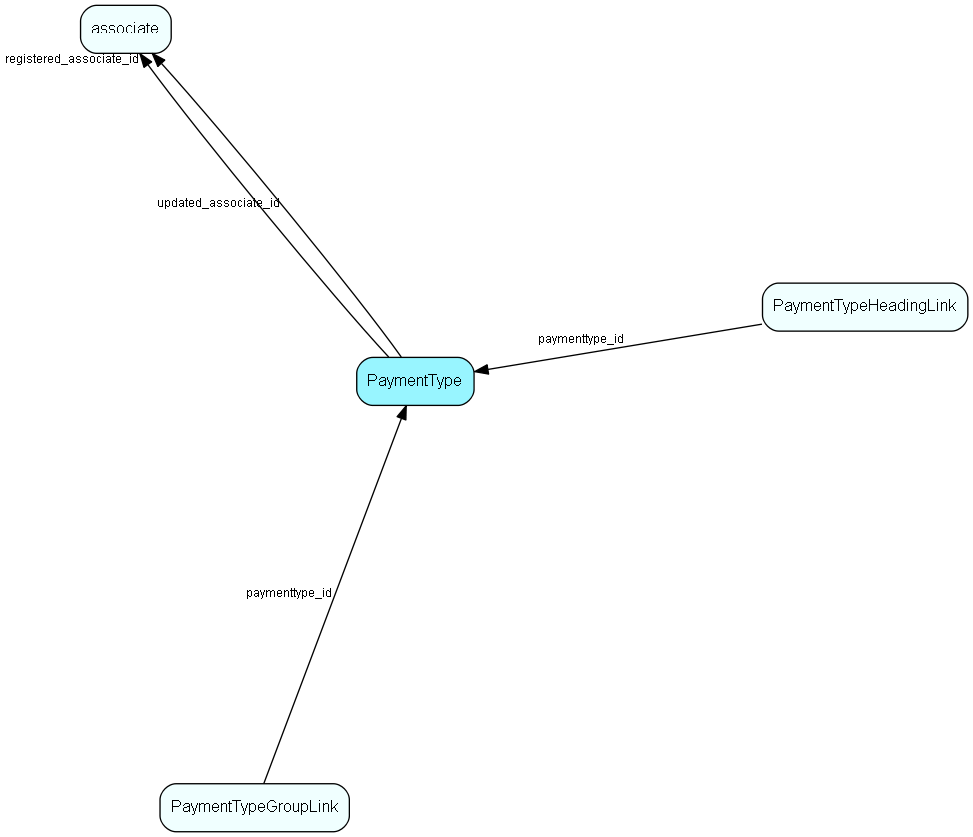

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
PaymentTypeGroupLink	User group link table for PaymentType, for MDO item hiding
PaymentTypeHeadingLink	Heading link table for PaymentType, for MDO item headings

Replication Flags

Replicate changes DOWN from central to satellites and travellers.
Replicate changes UP from satellites and travellers back to central.
Copy to satellite and travel prototypes.

Security Flags

No access control via user’s Role.

Related topics

PaymentTypeGroupLink table PaymentTypeHeadingLink table SuperOffice.WebApi.Data.PaymentType paymenttype Get Payment Type Put Payment Type
