dashboard_tile_definition table

dashboard_tile_definition Table (483)

Describes the contents of a tile

Name	Description	Type	Nullable
dashboard_tile_definition_id	Primary key	PK	No
name	The name of the tile	String(4000)	Yes
description	Detailed description	String(4000)	Yes
default_width	Default width when added to a dashboard	Int	Yes
default_height	Default height when added to a dashboard	Int	Yes
tile_type	Dashboard tile type	Enum DashTileType	Yes
entity_type	Dashboard entity type	Enum DashTileEntityType	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No
selection_id	Selection holding the criterias for the tile definition	FK selection	Yes
currency_mode	Dashboard currency mode	Enum DashTileCurrencyMode	Yes
sort_by	Sort by field	String(255)	Yes
measure	Dashboard measure type (Count, Sum, Avg, etc.)	Enum DashTileMeasure	Yes
measure_field	Field to be measured	String(255)	Yes
secondary_selection_id	Selection holding the replaced or changed criterias (period comparisons etc)	FK selection	Yes
layout_config	The JSON formatted layout config	Clob	Yes
entity_name	The entity measured by this tile, defines what provider to use	String(255)	Yes
measure_by_field	Field to group by	String(255)	Yes
currency_code	Currency code	String(3)	Yes
usage	Where this tile can be used	Enum DashTileUsage	Yes

Fields	Types	Description
entity_type	Enum	Index

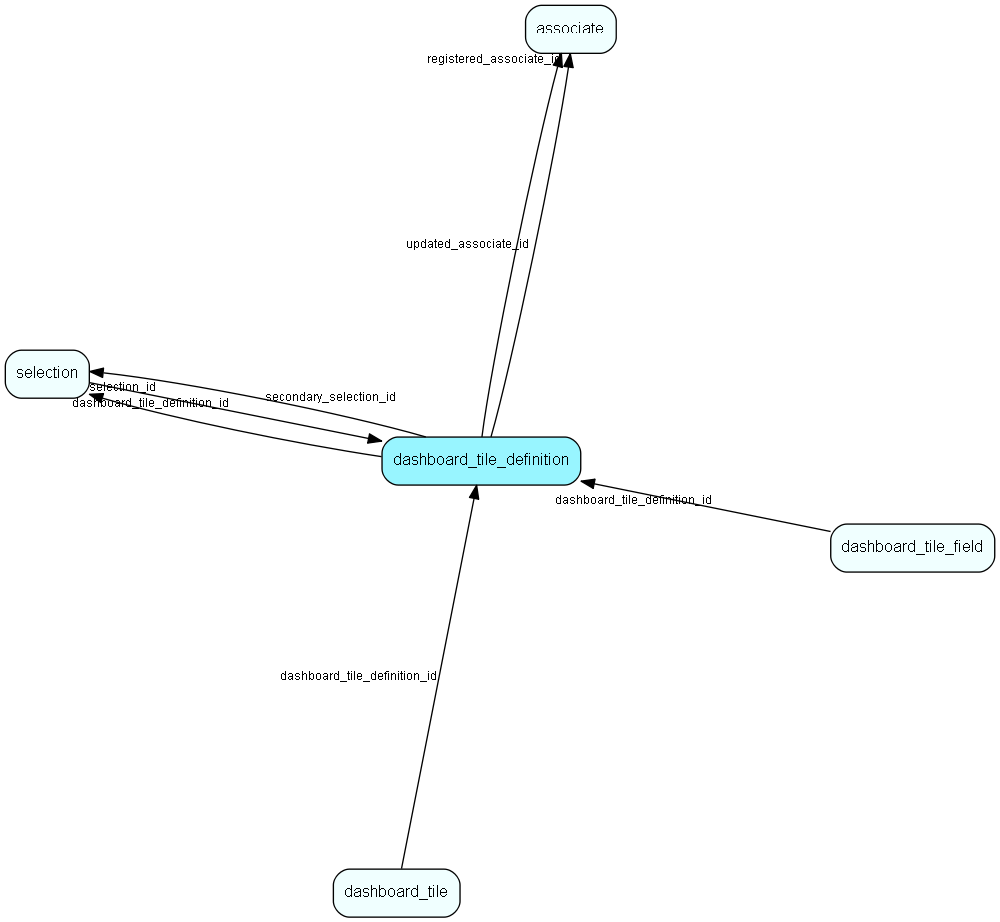

Table	Description
associate	Employees, resources and other users - except for External persons
dashboard_tile	Represents one tile in the dashboard
dashboard_tile_field	Describes the contents of a tile field
selection	Selections

Sentry controls access to items in this table using user’s Role and data rights matrix on the table’s parent.
