dashboard_tile table - SuperOffice

dashboard_tile Table (484)

Represents one tile in the dashboard

Fields

Name	Description	Type	Nullable
dashboard_tile_id	Primary key	PK	No
width	Width used by this tile in the dashboard	Int	Yes
height	Height used by this tile in the dashboard	Int	Yes
dashboard_id	The associated dashboard	FK dashboard	Yes
dashboard_tile_definition_id	The associated tile definition	FK dashboard_tile_definition	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No
rank	Rank order	UShort	Yes

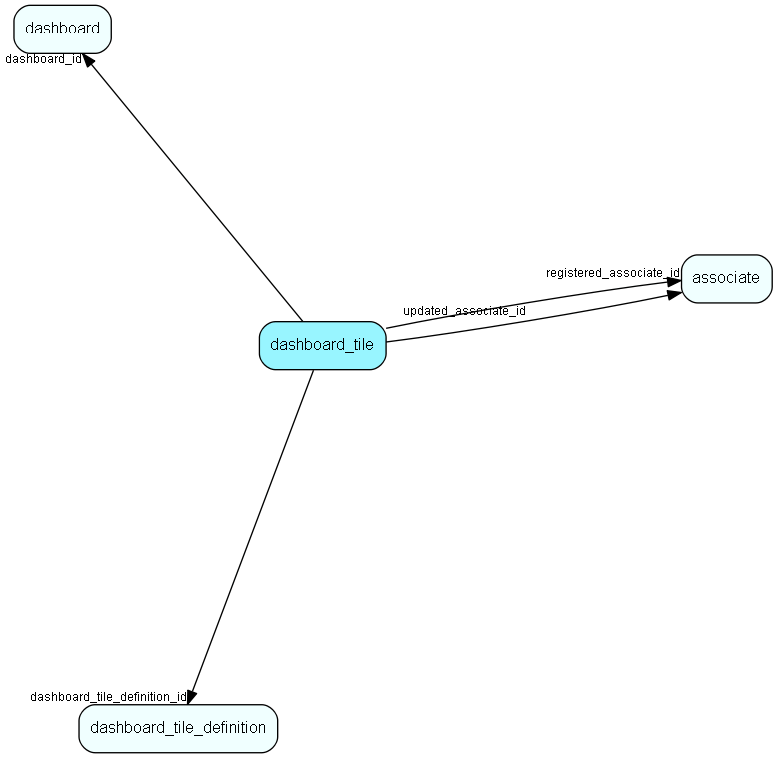

dashboard_tile table relationship diagram

Indexes

Fields	Types	Description
dashboard_id	FK	Index

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
dashboard	Describes a dashboard
dashboard_tile_definition	Describes the contents of a tile

Replication Flags

None

Security Flags

Sentry controls access to items in this table using user’s Role and data rights matrix on the table’s parent.

Related topics

dashboard_tile_definition table dashboard_tile_field table dashboard table Enum DashboardTileType Enum DashboardTileEntityType Enum DashboardTileOptionType
