relationdefinition table

relationdefinition Table (48)

Definition of a relation. This table defines the relations that can exist in the database. Each relation has an active text and a passive text. The table RelationTarget specifies which pairs of tables this relation can connect. Use of the active and passive texts is dependent on which direction the relation is viewed in, e.g., active text = “Owns” and passive text = “Is owned by”.

Fields

Name	Description	Type	Nullable
reldef_id	Primary key	PK	No
name	Active text	String(239)	Yes
rank	Rank order	UShort	Yes
tooltip	Tooltip or other description	String(254)	Yes
deleted	0 -> record is active 1 -> record is ‘deleted’ and should not be shown in lists	UShort	Yes
passive_text	Text used in passive direction	String(254)	Yes
defcomment	Comment	String(254)	Yes
registered	Registered when	UtcDateTime	No
registered_associate_id	Registered by whom	FK associate	No
updated	Last updated when	UtcDateTime	No
updated_associate_id	Last updated by whom	FK associate	No
updatedCount	Number of updates made to this record	UShort	No

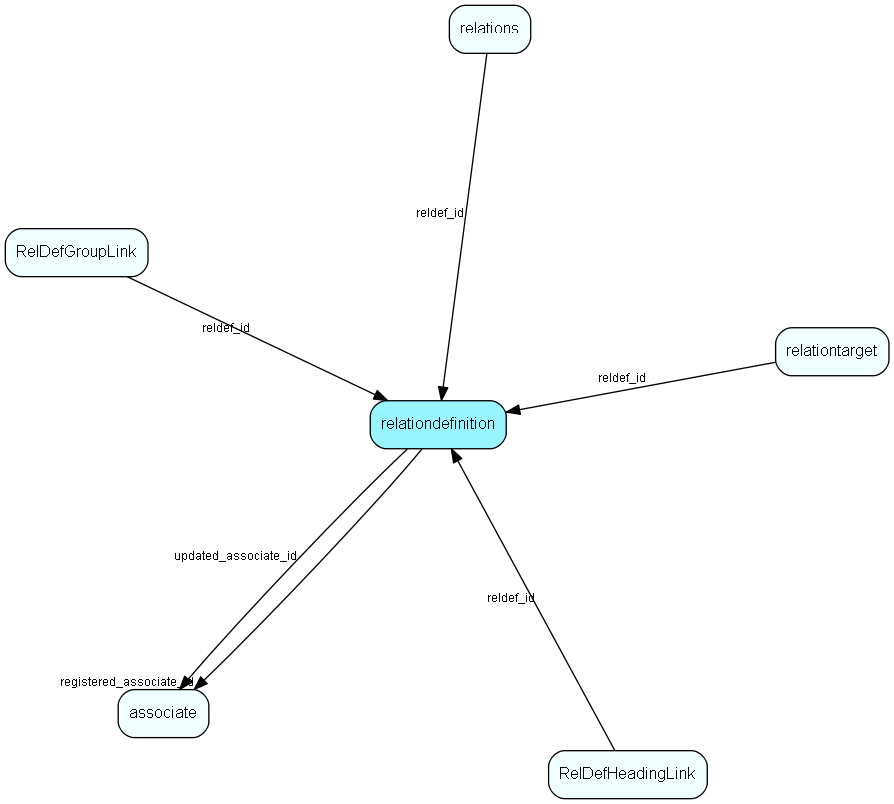

relationdefinition table relationship diagram

Indexes

Fields	Types	Description

Relationships

Table	Description
associate	Employees, resources and other users - except for External persons
relations	Instance of a relation, in principle between any two records, as long as they are defined in RelationDefinition. All instances of relations are held in this table; their definitions are in the RelDef table (RelDef + RelTarg define which relations you can have, this table contains the relations the user has actually entered). From 6.1 all links between appointments, sales and documents are also stored in this tabel.
relationtarget	Definition of targets for a relation. Links a relation definition (RelDef) to source and target tables. In general, a relation can be created between any pair of tables. This table is used for specifying which table pairs a particular relation can be used for. A relation definition should have at least one row in this table, and can have more. Note: The 5.0 Maintenance and GUI only support contact and person as valid values for the source_table and destination_table fields, in any combination. Other relations will not be shown, and relation definitions pointing to other tables will not be editable from the Maintenance GUI; however, nothing will crash.
RelDefGroupLink	User group link table for RelDef, for MDO item hiding
RelDefHeadingLink	Heading link table for RelDef, for MDO headers

Replication Flags

Replicate changes DOWN from central to satellites and travellers.
Replicate changes UP from satellites and travellers back to central.
Copy to satellite and travel prototypes.

Security Flags

No access control via user’s Role.
